EAPP Gas Turbine Engine LYC8.3G-G145 145kw

FOB Reference Price:Get Latest Price
US $8,000-15,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Any port in China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Usage:
Automobile
Fuel:
Natural Gas
Stroke:
4 Stroke
Cylinder:
Multi-cylinder
Cold Style:
Water-cooled
Start:
Electric Start
Place of Origin:
Hubei, China (Mainland)
Brand Name:
EAPP
Model Number:
LYC8.3G-G145
Dimension(L*W*H):
1250*760*1050mm
Weight:
604kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Fuel::
natural gas
Engine model::
LYC8.3G-G145
Start method::
electric start/DC 24V
Bore*Stroke::
114*135
Rated power::
145KW
Compression ratio:
10.5:1
RPM::
1500rpm
Displacement::
8.3L
Steady state governing rate::
≤0.5%
Color:
Request
Packaging & Delivery
Packaging Details
1.plywood case
2.neutral packing
3.according to the requirement of customers.
Delivery Time
Shipped in 30 days after payment
Product Introduction

EAPP LY-G series Gas Engine Introduction

EAPP LY-G series Gas Engine is a CNG or LNG fueled gas engine used for generating electricity, it is a new green power which replaces fuel and coal.
Gas engine has the advantages of safe and convenient operation, high combustion efficiency, low fuel consumption, good startup, low noise and vibration, low emission pollution, etc. Comparing with other similar models on the market, gas engine merit is: smaller volume, simple structure to maintenance and repair and great market prospect.

Product Parameters
Item
Unit
Iginition System
EAPP Dedicated Gas Ignition System
Intake Method
Turbocharged
Cooling Method
Air-air intercooling
Mixing Method
Premixing before supercharging
Cylinder Arrangement
6-Cylinder inline
Bore*Stroke
mm*mm
114*135
Displacement
L
8.3
Compression Ratio
10.5:1
Rated Speed
r/min
1500
Rated Power
KW
145
Generator Rated Power
KW
120
Steady-state Speed Regulation
%
≤0.5%
Starting Voltage
DC, 24V
Cooling Method
Water Cooling
Dimension(L*W*H)
mm
1250*760*1050
Weight
kg
604
Generator Set Model:
LY6CG120KW

Warm Note:
1.Gas source: natural gas, methane(CH4) concentration ≥90%.
2.Natural gas engine special lubrication oil is needed.
3. Customized requirement for above is available upon request.
4. Supplier is responsible for quality failure parts in one year or 2000hrs, without any other incidental expenses. If need to extend warrenty to 5000hrs, additional cost is needed.

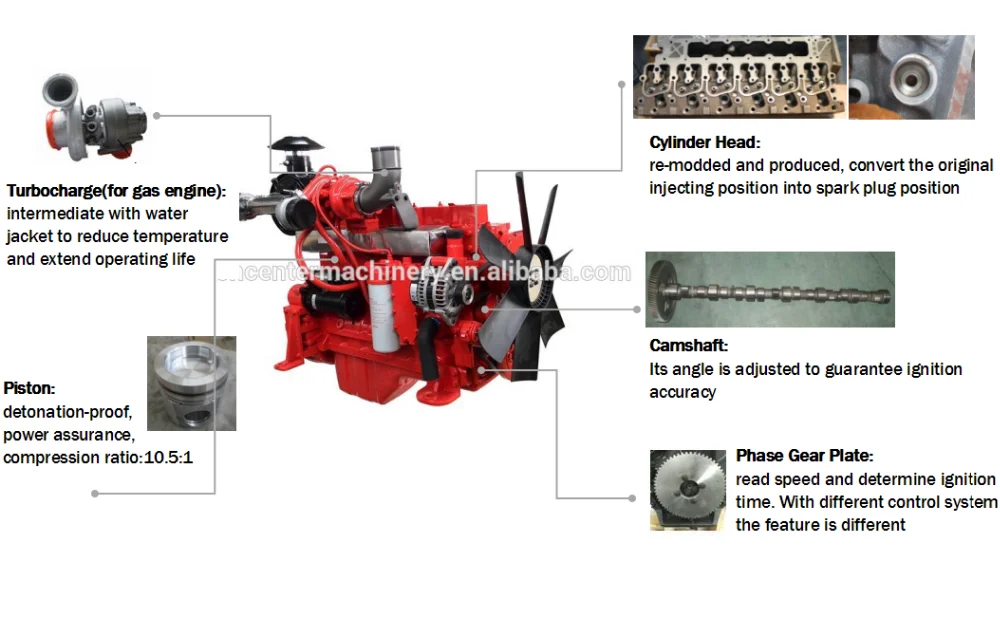

Product Details Show
Why Choose Us
Item
EAPP
Similar products
Engine Body
Huge amount of prototype engines of series of world brand as model
--Reduce the failure and maintenance cost
--High component versatility and quality assurance
Chinese or imported brand
--High price of import engine
--Low reliability of other domestic
brand engine
Main Parts
Performance parts such as cylinder head, camshaft and piston are all self-designed, modded and produced according to USA original gas engine parts, which have passed 2000 hours of engine bench test to ensure its reliable performance
Process or rebuilt directly on the parts of diesel engine or gasoline engine,
--Poor strength and reliability of parts
--not suitable for high temp gas conditions,
--Short service life, few conditions do durability test
Control System
All the core parts are original BOSCH (throttle valve, spark plug), Impco(mixer), Mada(valve relief, low pressure gas filter), etc.
--Advanced mainstream module,
--Accurate intake and ignition control,
--Excellent engine steady speed,
--Smooth running, low noise,
--Low consumption and energy saving
Various brand
--Uneven quality
Service and cost
Sufficient engineering and technical personnel, national wide sources and service to meet customers' requirement
No core resources, long service cycle, high cost
Specialty and Ability
Specialized in this field for 10 years
--Supplier of power unit in industrial and power generation market,
--Timely technical and business support
————————

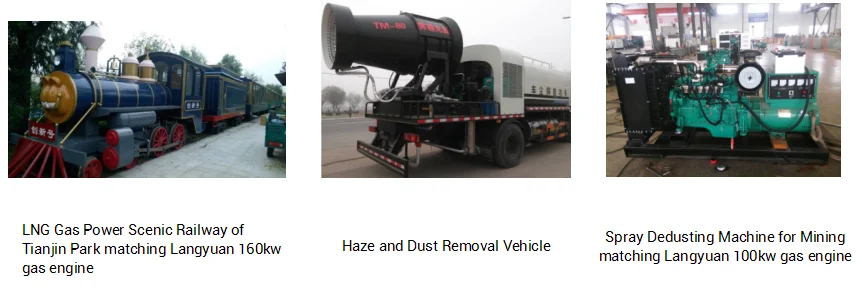

Outstanding Cases

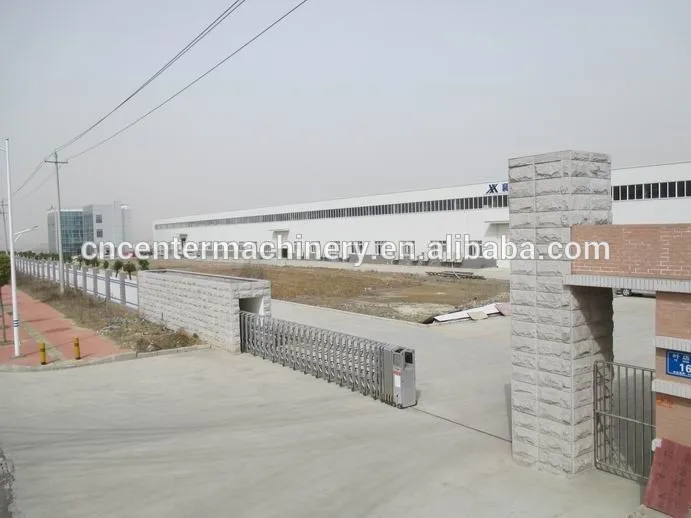

Our Company

Xiangyang center Machinery Component Co., Ltd specialized in the research and development of engine power and committed to providing the most professional services for the special market needs since 2011.
Our main products are all series of CUMMINS engine parts, engine assemblies, engine power units and generators. At present, our company is specialized in the research and development of gas engines. Our products are put into the market after being successfully and have been widely acclaimed in the same industry.
